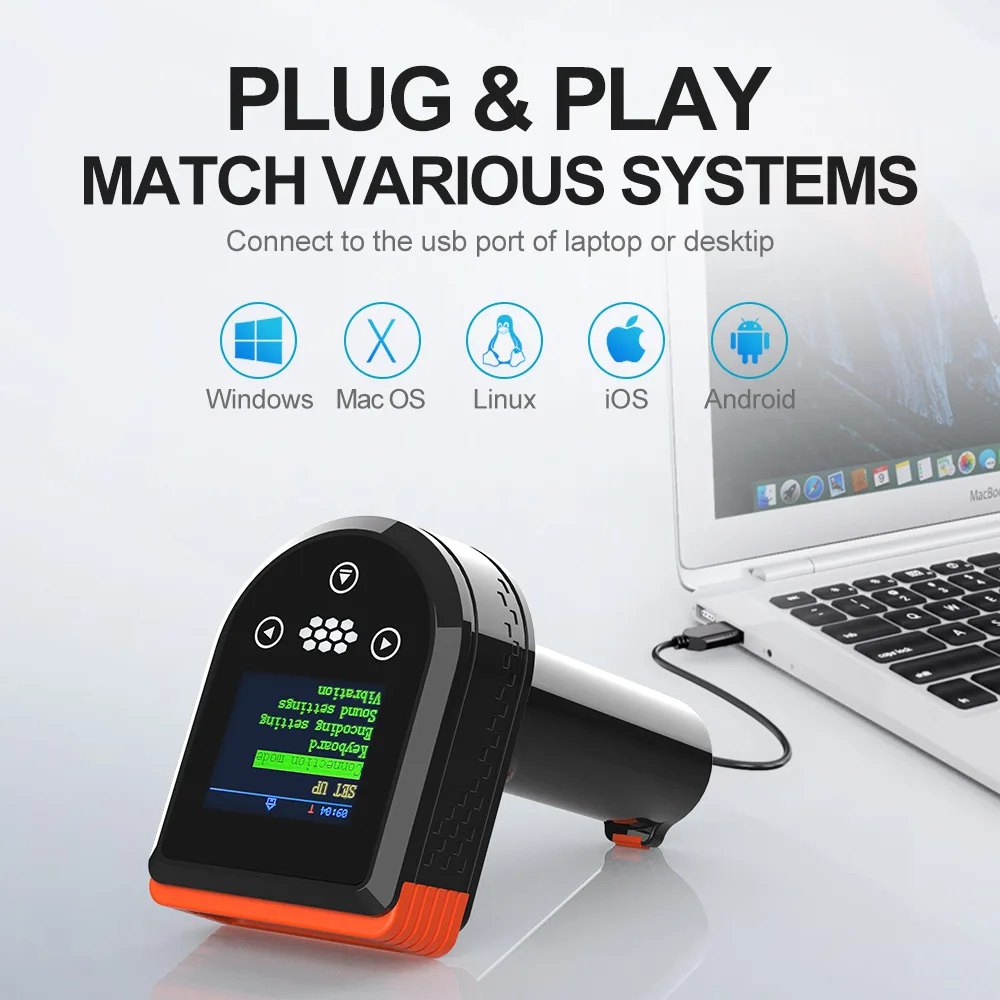

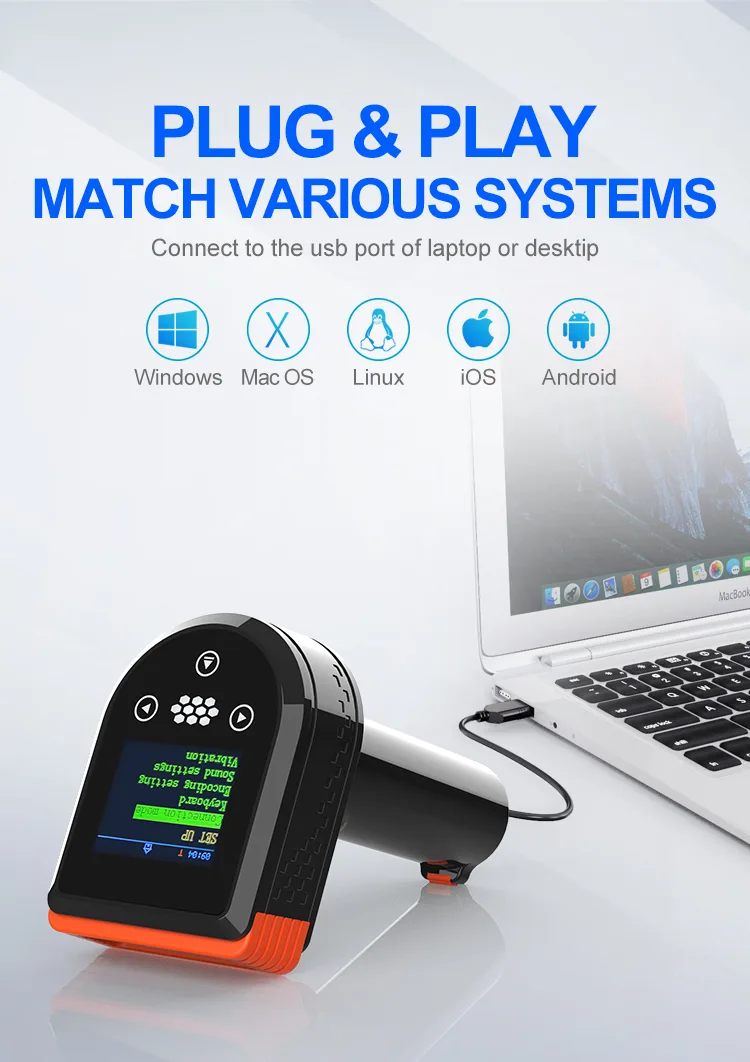

● Drive-free, plug and play.

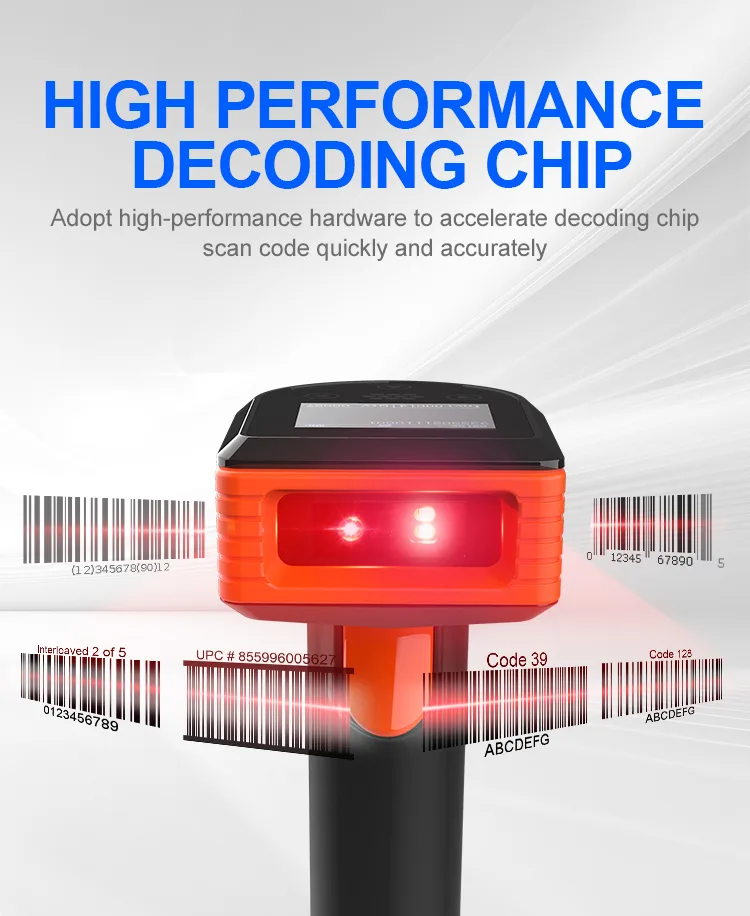

● High-performance global exposure, efficient scanning of fuzzy code, reflective code and color code.
● Support continuous scanning and automatic scanning.
● Super-large wide-angle lens, global coverage, supports scanning at any angle.
● Support for multiple languages (24 languages are supported by default, and the languages can be customized).
● Support customization of OCR character recognition.

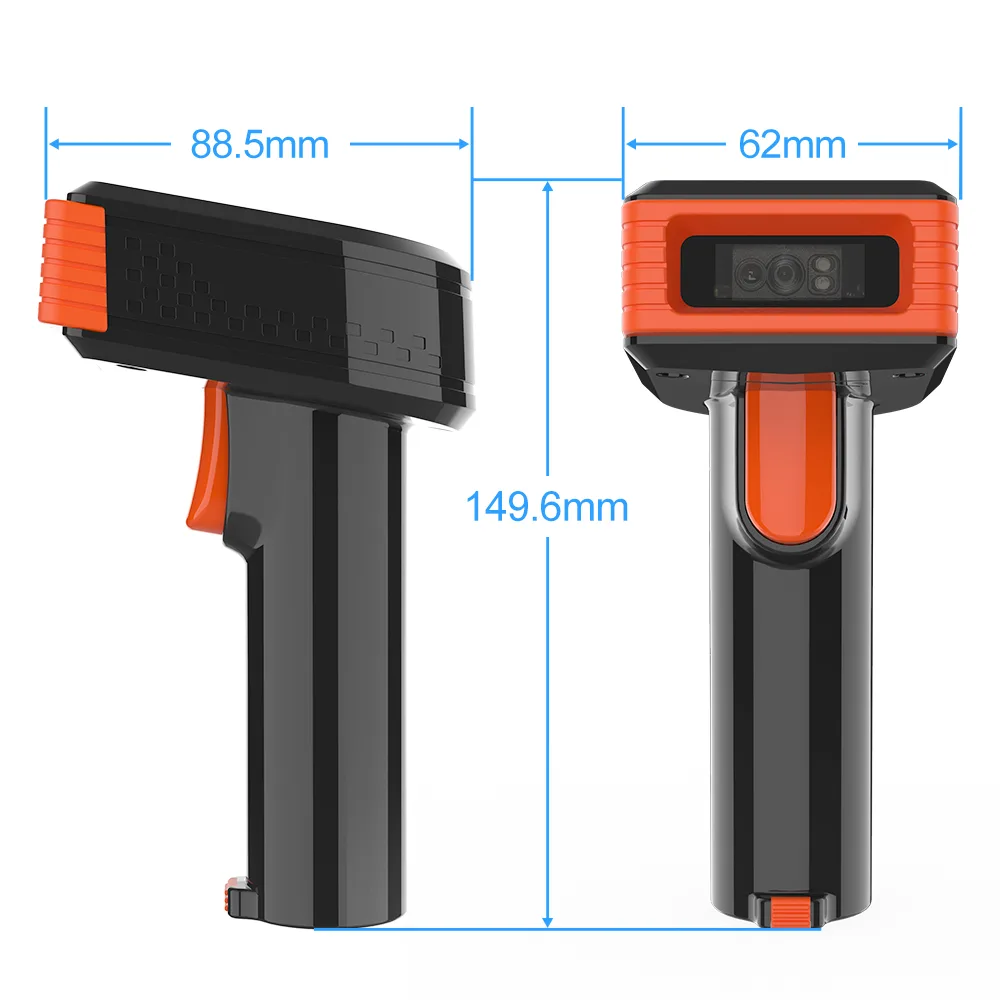

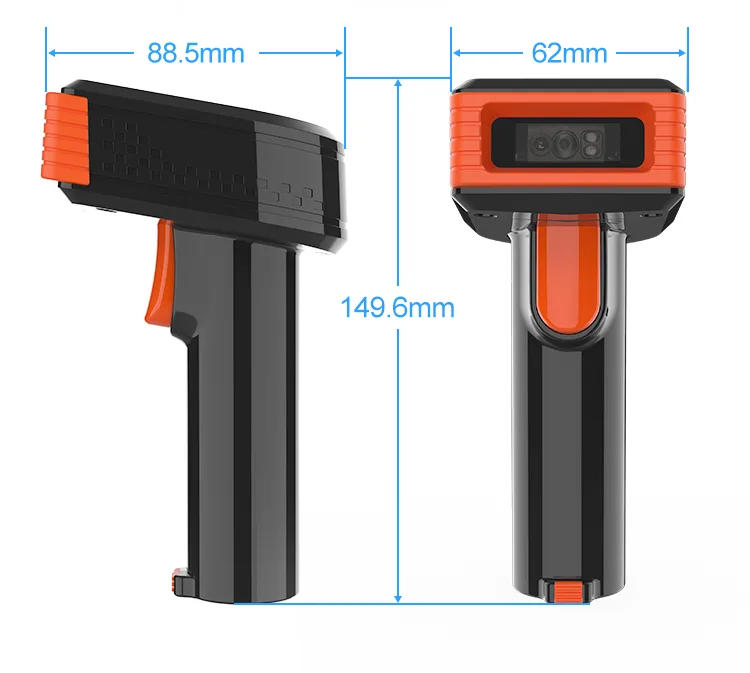

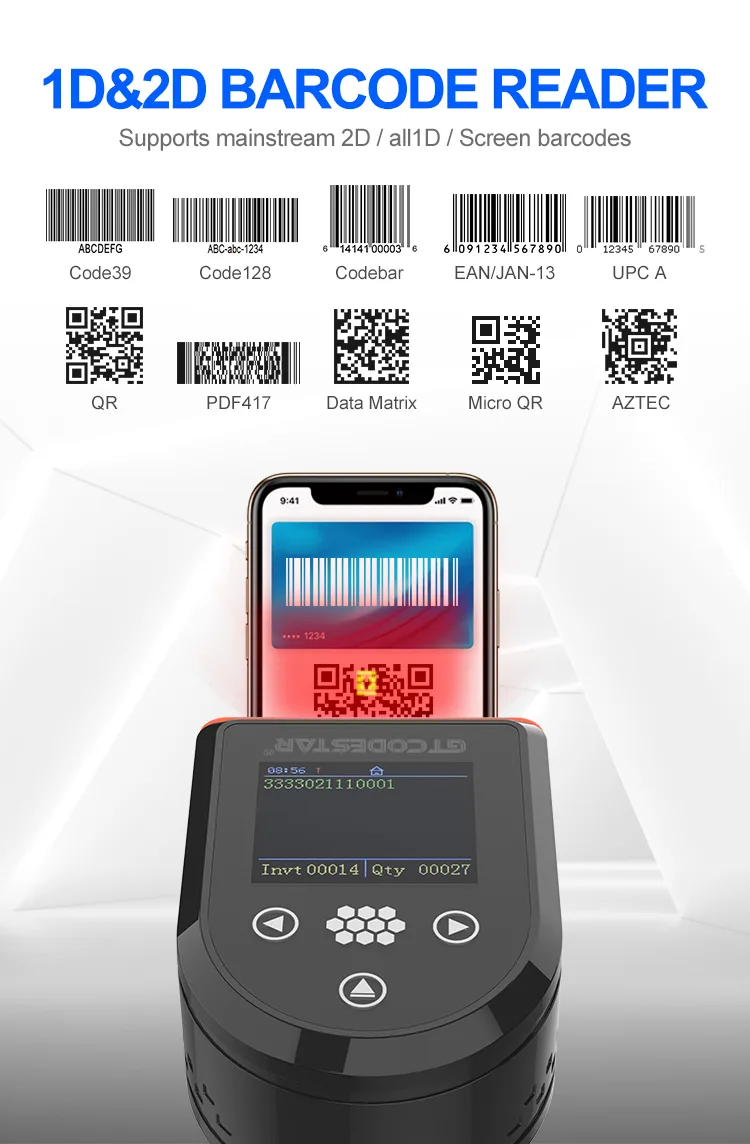

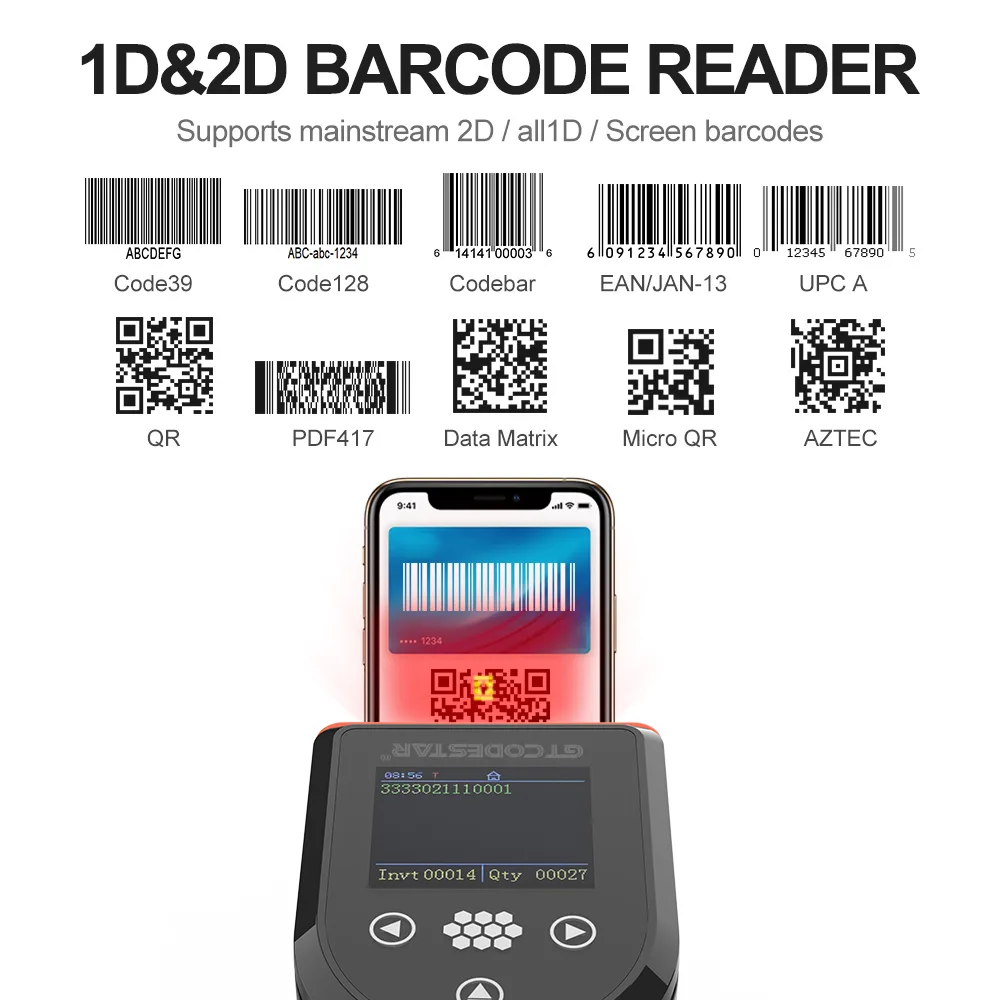

Technical ParameterModelX-3301VItemWired 2D Barcode ScannerPhysical ParameterMaterialABS+PCPower SupplyDC 5V ±5%Current200mA（working）；40mA（Standby）；220mA（maximum）【Average current】Power Consumption1.00W（working）；0.20W（Standby）；1.10W（maximum）【Average power consumption】Weight145.0g±5g（Without wire）SizeL * W * H：149.6 * 62.0 * 88.5（unit：mm）Colorblack grey，BlackPerformance ParameterInterfaceUSBSystem SupportedLinux，Android，Windows XP、7、8、10，MACLanguage SupportedEnglish; Belgium; Finland; sent; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland ; Romania; Slovakia;[Support virtual keyboard]Sensor640×480 global exposure CMOSLight SourceRed light LED aiming + red light LED lightingprocessor32-bit ARM MCU + DSPMotion toleranceCode128： 60cm/secQR： 65cm/secResolution≥4milBit error rate1/5000000Reading ModeImageTrigger ModeButton trigger mode, self-sensing mode, continuous scan modePrompt ModeBuzzer, Indicator Light（LED）Print Contrast≥25%Scanning AngelRoll 360°，Pitch 55°，Yew 55°Scan speed100 times/secDecoding1D◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISBN Capability◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar ◎Matrix 2 of 5
◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8
◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar
◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93
◎GS1 composite code

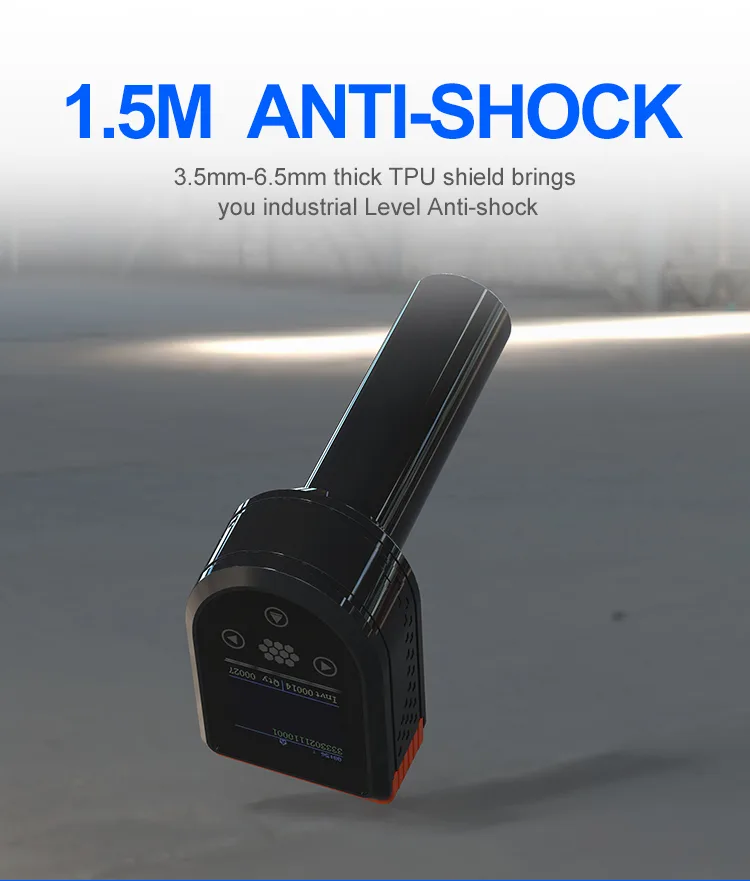

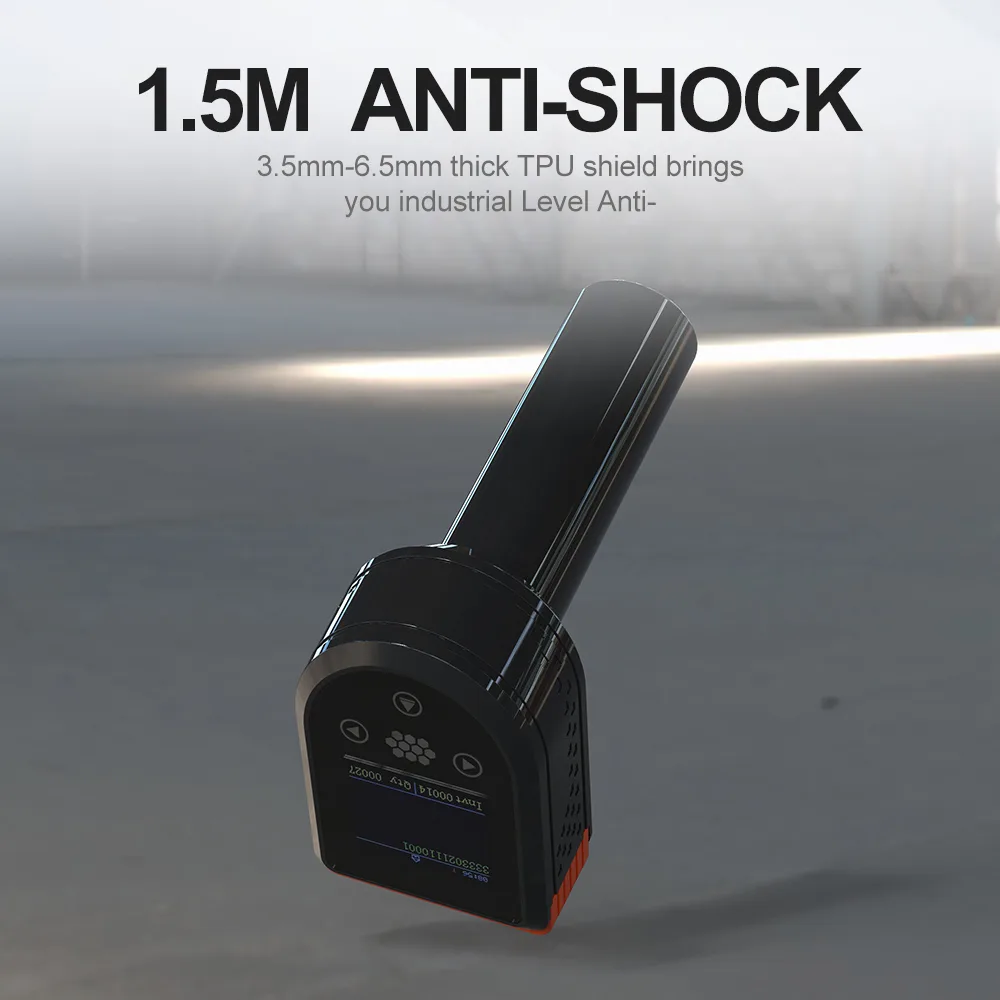

2D◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin ◎AZTEC ◎MaxicodeScanning DepthQR 7.50mil 15byte：5cm - 10cmQR 10.83mil 16byte：3cm - 16cmCode128 5.83mil 15byte: 6cm - 15cmEnvironmental parametersIP GradeIP52Operating Temp.0 to 60℃ / 32 to 122℉Storage Temp.0 to 60℃ / 32 to 122℉Operating Humidity20% to 85%（No Condensation）Storage Humidity20% to 85%（No Condensation）ESD Protection15KV air dischargeShock Resistance1.5m free fall on concrete surfaceAmbient light0→100000Lux
