● Megapixel global wide-angle lens, easy coverage, efficient decoding at any angle.
● Support continuous scanning and automatic scanning.
● Support high-precision barcode, and quickly scan small 1D/2D barcode.
● Support for multiple languages (24 languages are supported by default, and the languages can be customized).
● Support customization of OCR character recognition.

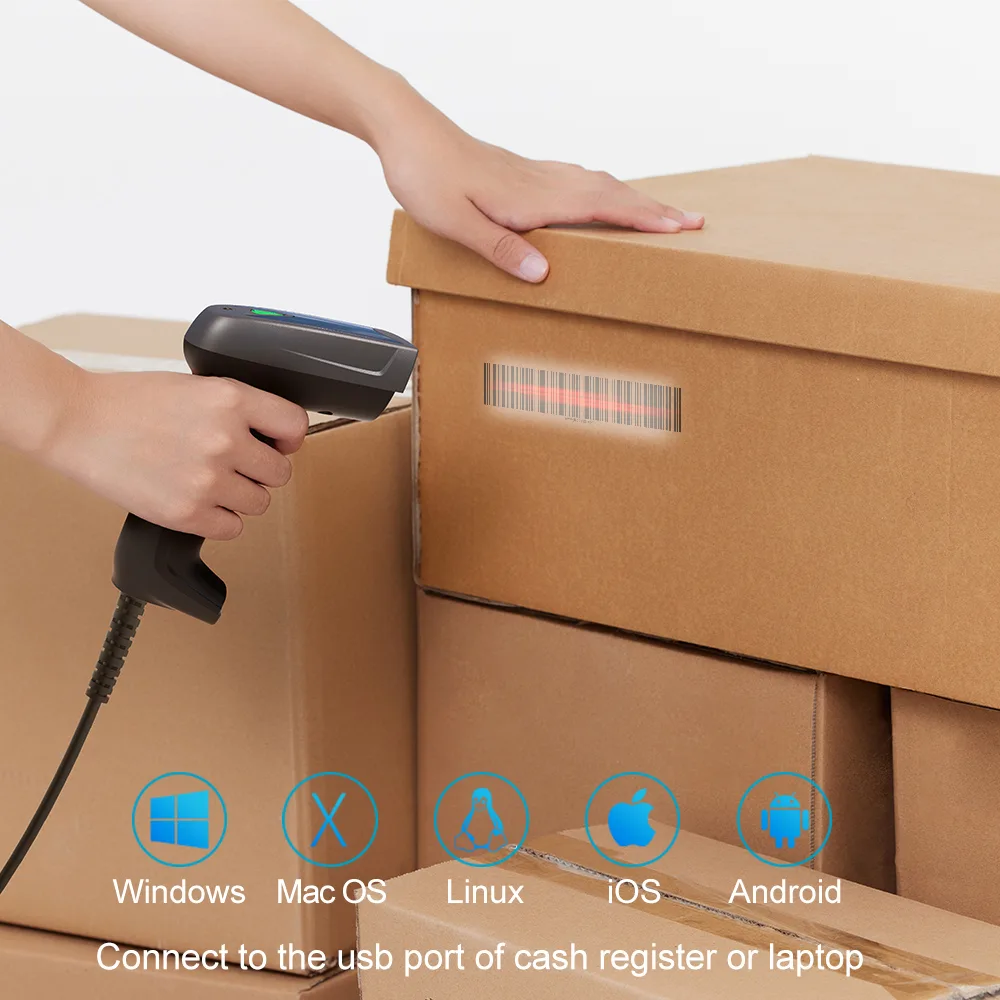

● Drive-free, plug and play.
X-19122Technical ParameterModelX-19122

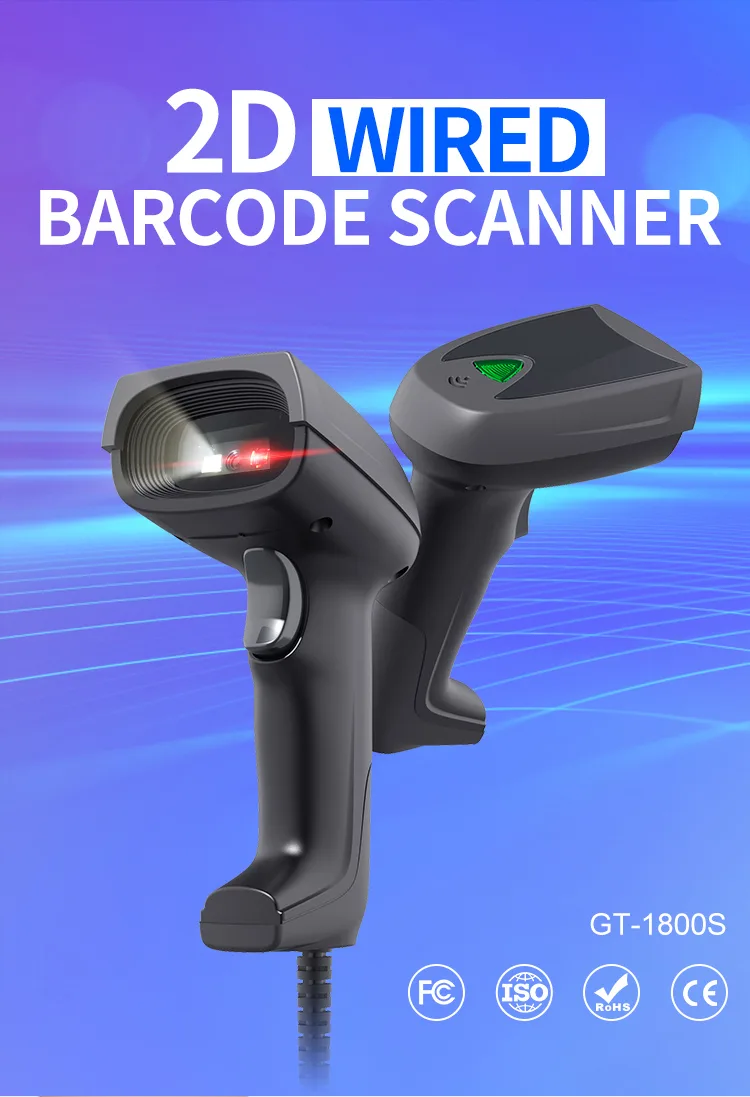

ItemWired 2D Barcode Scanner

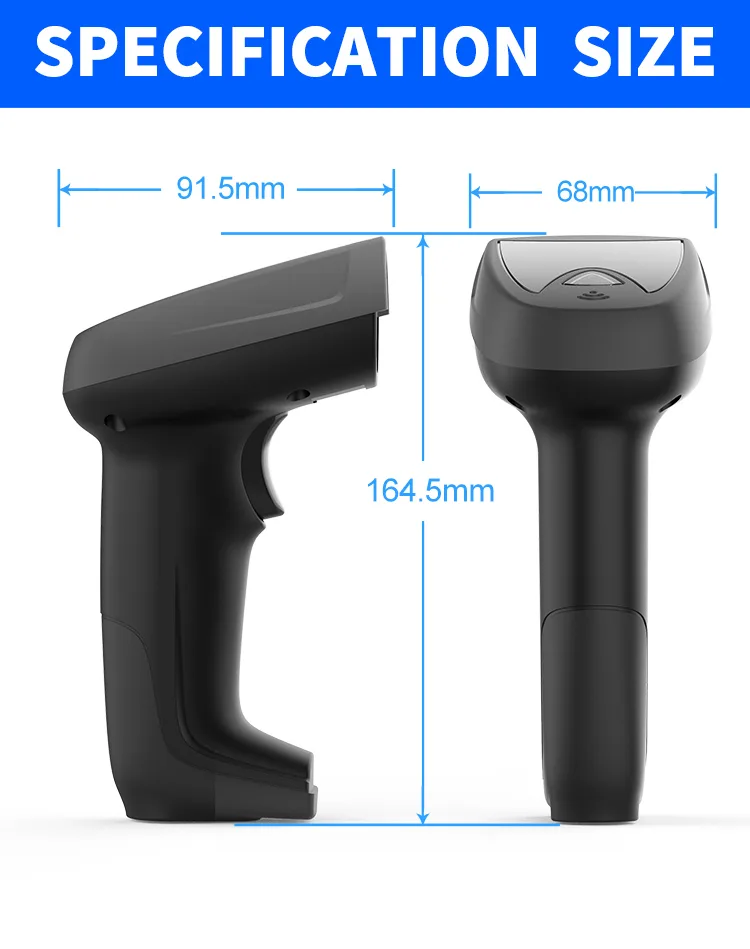

Physical ParameterMaterialABS+PCPower SupplyDC 5V ±5%Current150mA（working）；45mA（standby）210mA（maximum）【Average current】Power Consumption0.75W（working）；0.23W（standby）；1.05W（maximum）【Average power consumption】Weight145.0g±5g（Without wire）SizeL * W * H：176.9*68.3*90.5（unit：mm）Colorblack grey，BlackPerformance ParameterInterfaceUSB；（RS232 can be customized）System SupportedLinux，Android，Windows XP、7、8、10，MACLanguage SupportedEnglish; Belgium; Finland; sent; Germany; Italy; Sweden; United Kingdom; Denmark; Norway; Spain; Portugal; Turkey Q; Turkey F; Japan; Russia; Czech Republic; Thailand; Ukraine; Brazil; Greece; Hungary; Netherlands; Poland ; Romania; Slovakia;

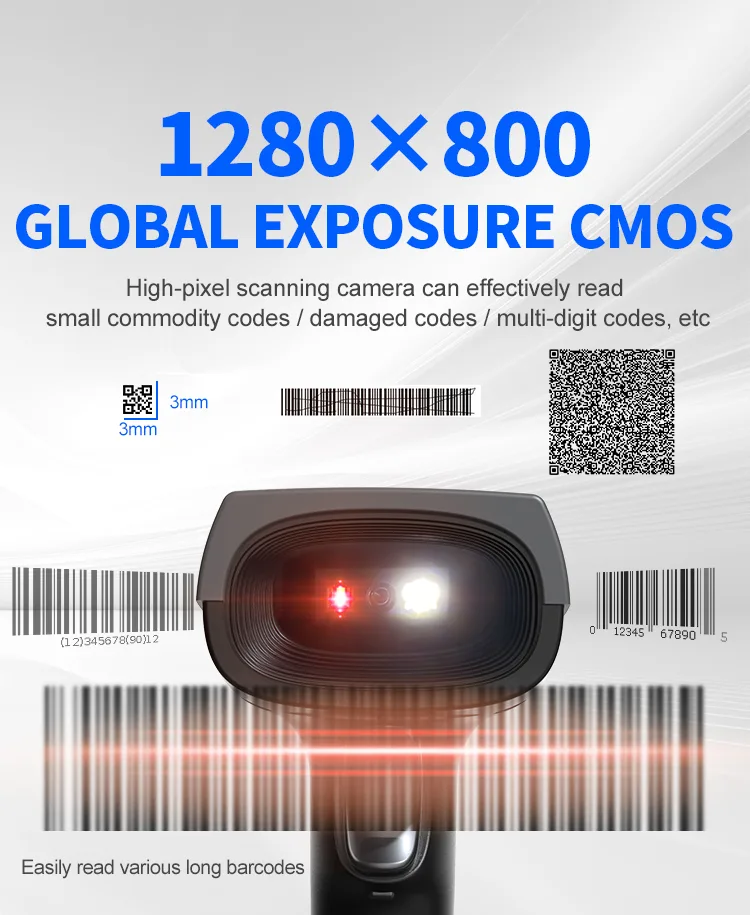

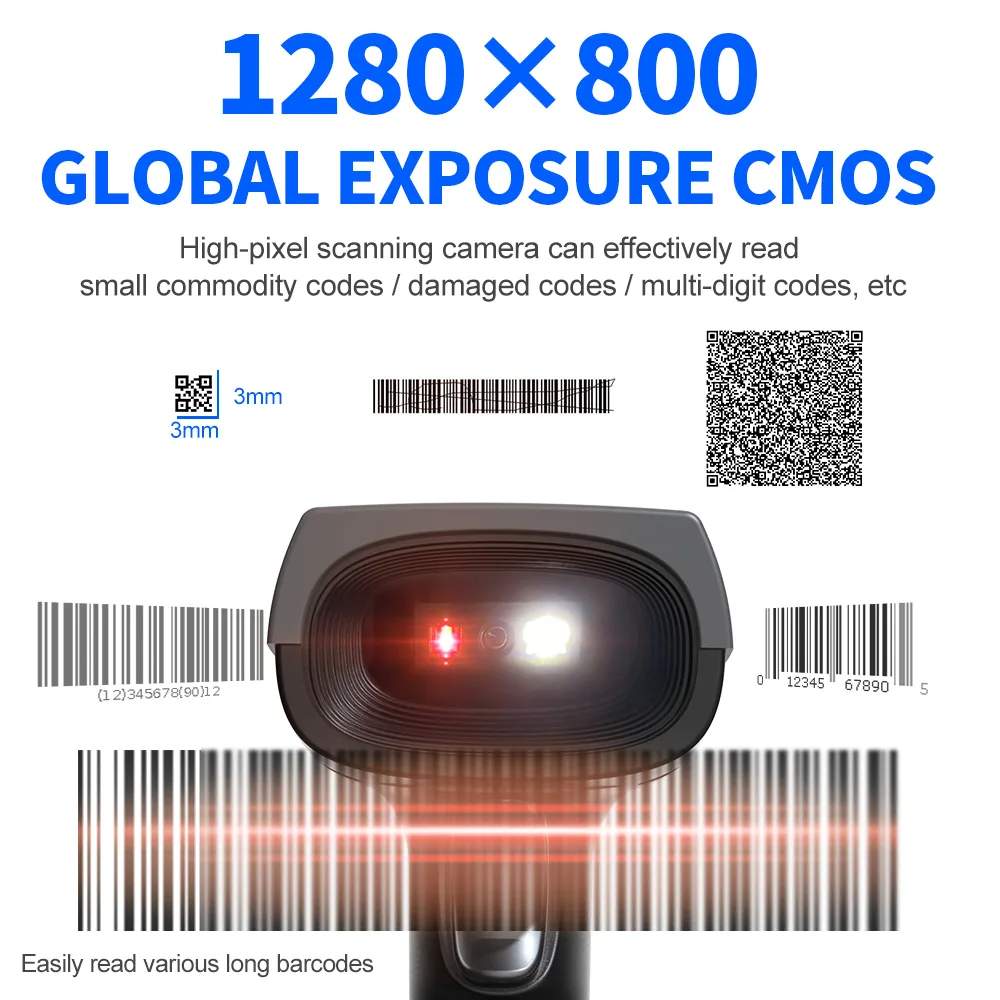

[Support virtual keyboard]Sensorglobal exposure CMOS 1280×800Light SourceRed light LED aiming + white light LED lightingprocessor32-bit ARM MCU + DSPMotion toleranceCode128： 80cm/sec

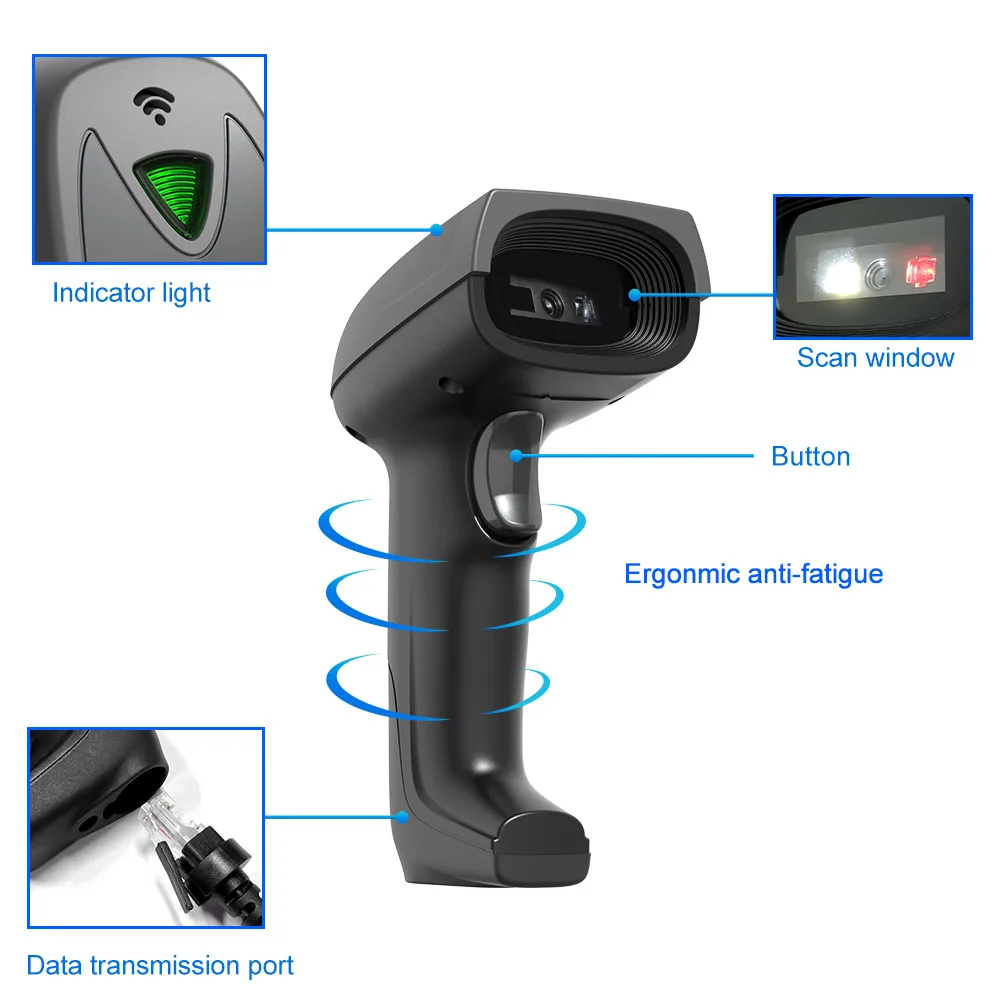

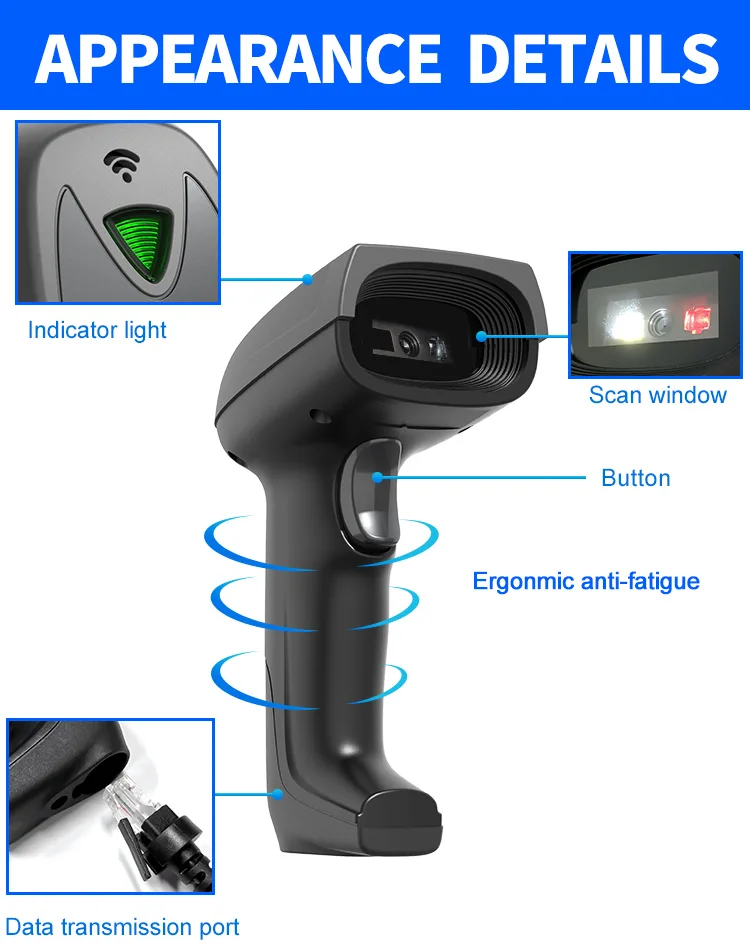

QR： 85cm/secResolution≥4milBit error rate1/5000000Reading ModeImageTrigger ModeButton trigger mode, self-sensing mode, continuous scan modePrompt ModeBuzzer, Indicator Light（LED）Print Contrast≥25%Scanning AngelRoll 360°，Pitch 55°，Yew 55°Scan speed100 times/secDecoding

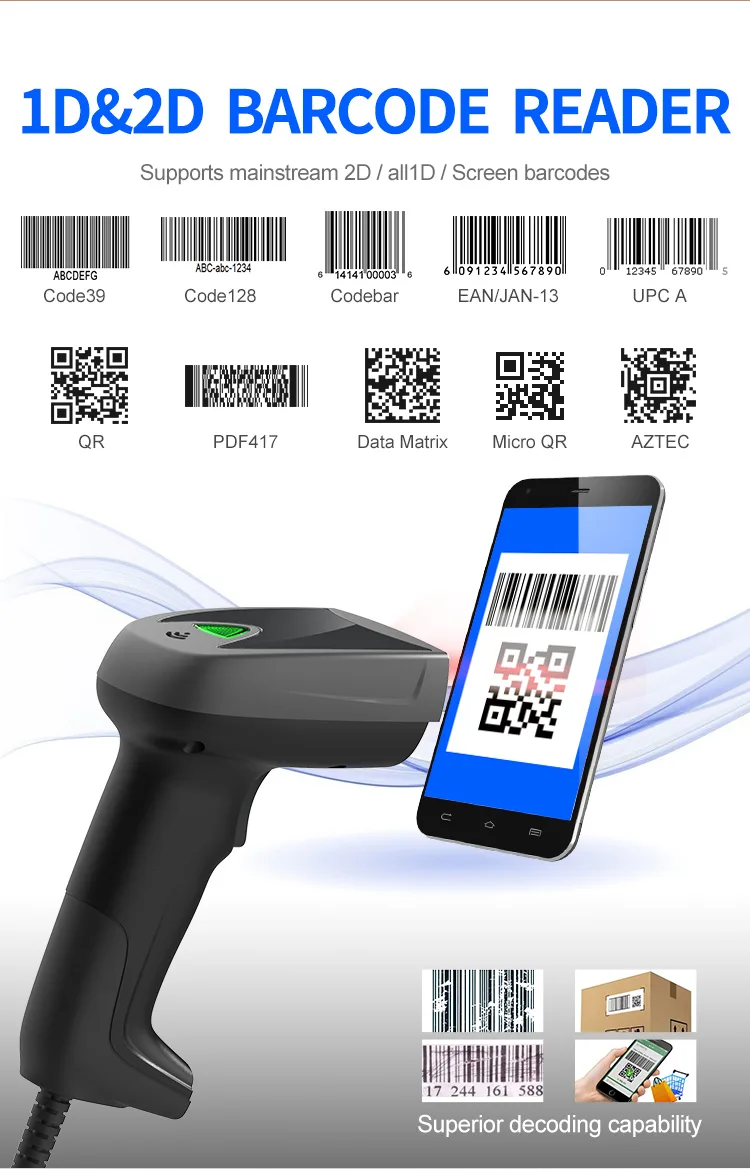

Capability1D◎Interleaved 2 of 5 ◎ITF-6 ◎ITF-14 ◎ISB-128
◎Code 11 ◎UCC/EAN-128 ◎GS1 Databar
◎Industrial 2 of 5 ◎Code 128 ◎EAN-13 ◎EAN-8
◎Code 39 ◎UPC-A ◎UPC-E ◎Codabar
◎Standard 2 of 5 ◎Plessey ◎MSI-Plessey ◎Code 93
◎GS1 composite code ◎Matrix 2 of 5 ◎Code 322D◎PDF417 ◎Data Matrix ◎QR Code ◎HanXin
◎AZTEC ◎Maxicode ◎Micro QR ◎Micro PDF417Scanning Depth QR 7.50mil 15byte：5cm - 10cm
QR 10.83mil 16byte：4cm - 16cm

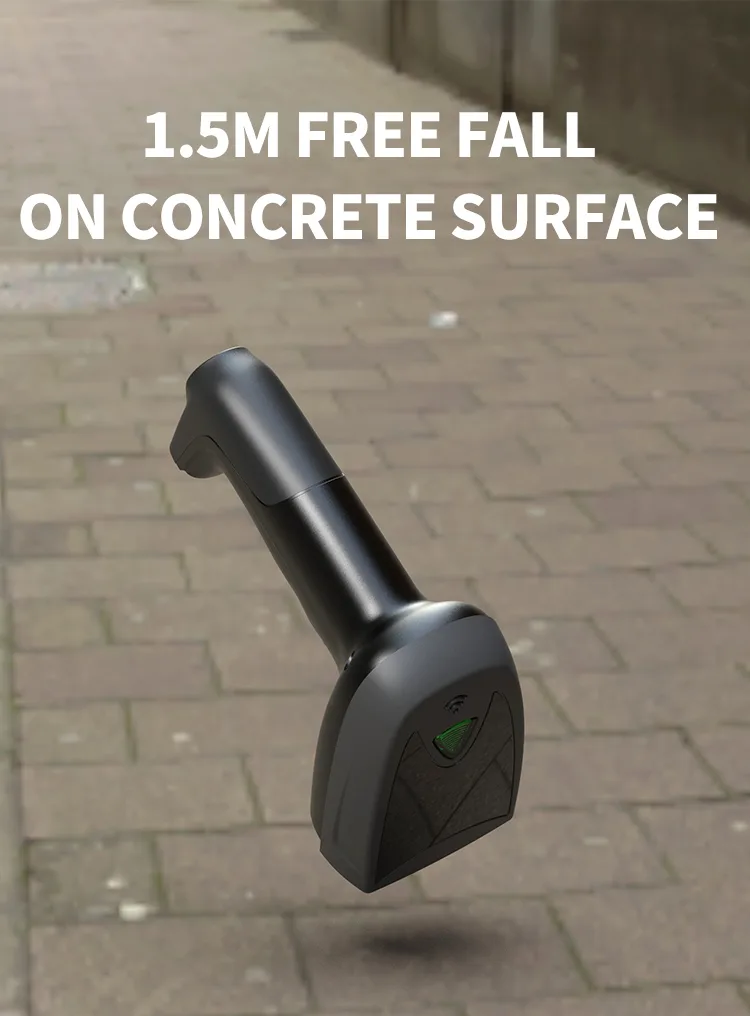

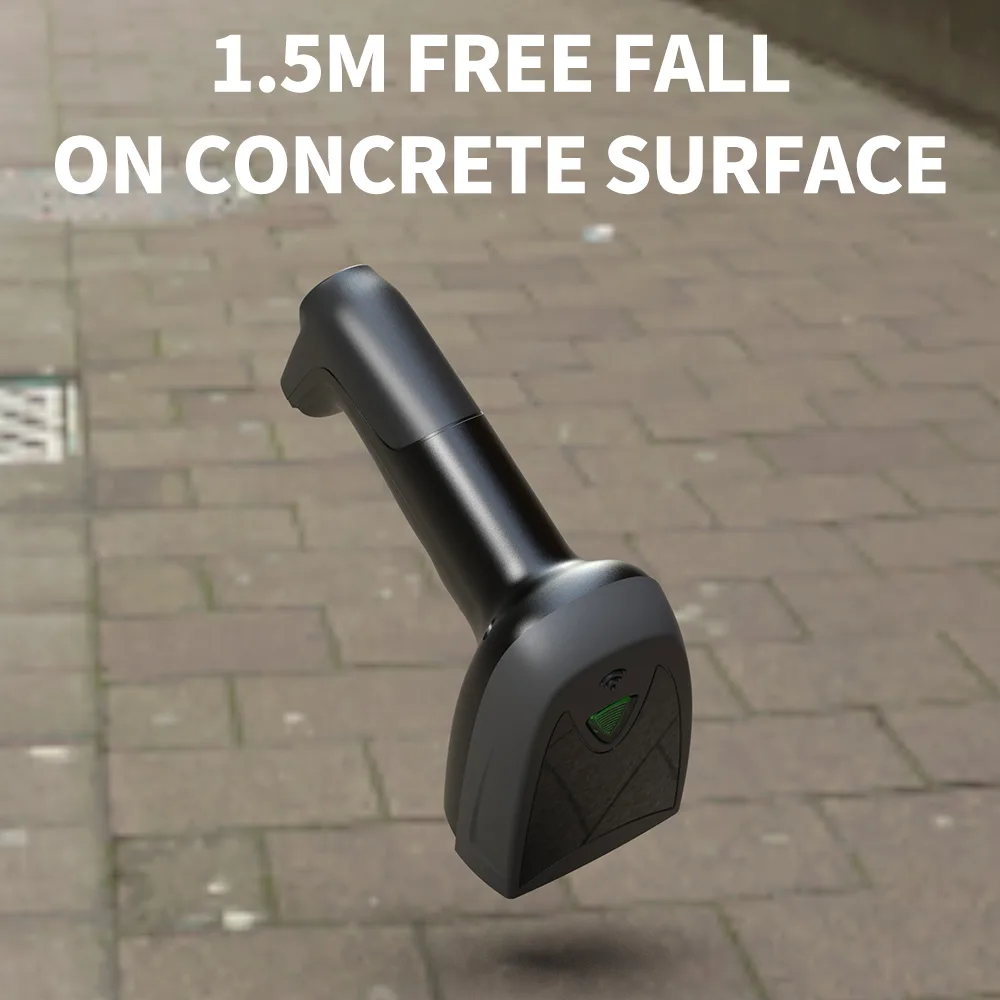

Code39 5.83mil 15byte: 6cm - 16cmEnvironmental parametersIP GradeIP52Operating Temp.0 to 50℃ / 32 to 122℉Storage Temp.0 to 50℃ / 32 to 122℉Operating Humidity20% to 85%（No Condensation）Storage Humidity20% to 85%（No Condensation）ESD Protection15KV air dischargeShock Resistance1.5m free fall on concrete surfaceAmbient light0→100000Lux
