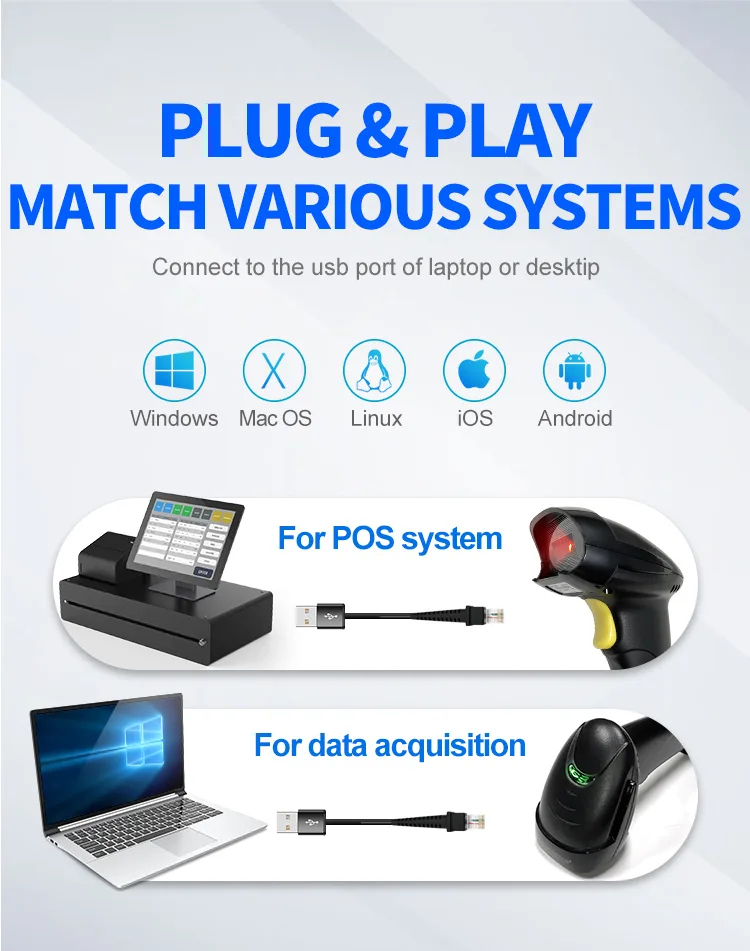

Interface: USB/KB/COM;
Scanning Mode: set to Manua model & continuous scanning mode&Auto-sensing mode
Light Source: Visible Red light 632nm LED;
Sensor: Linear CCD Sensor;
Processor: 32-bit ARM Cortex-M3 MCU
Scanning speed: 300times/sec;

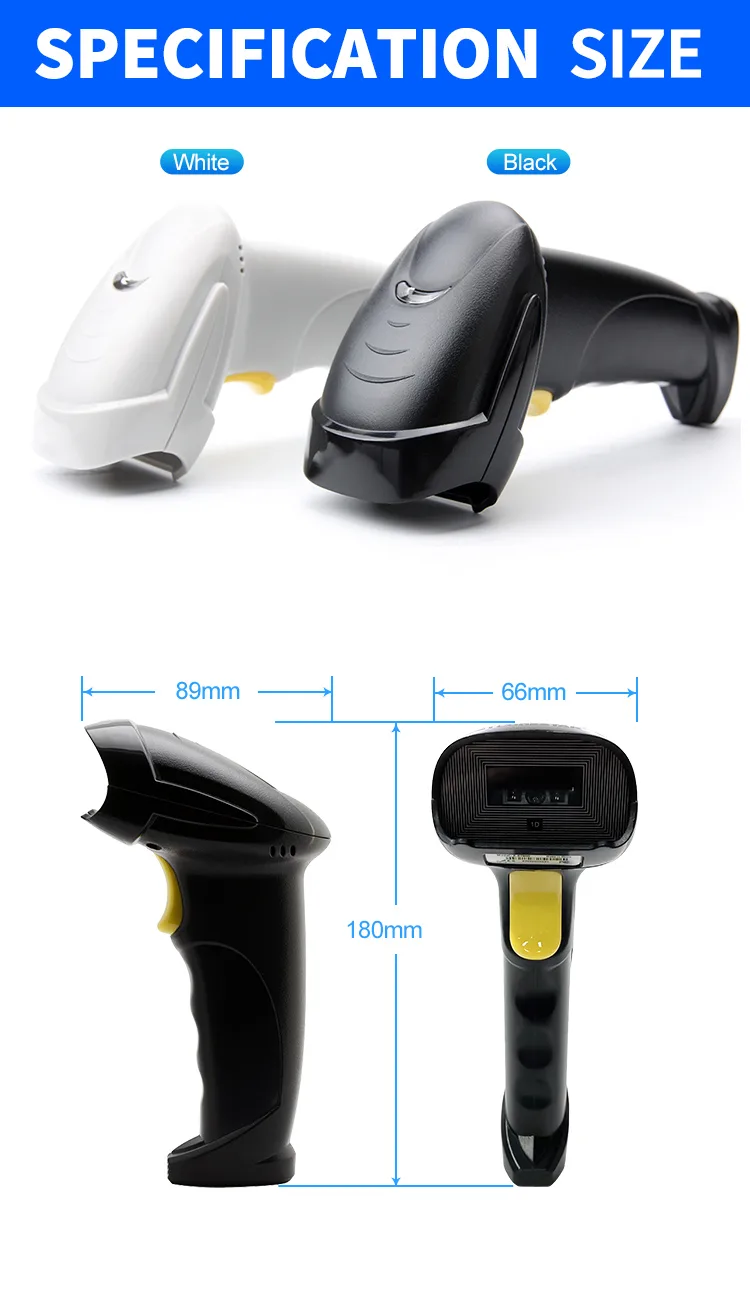

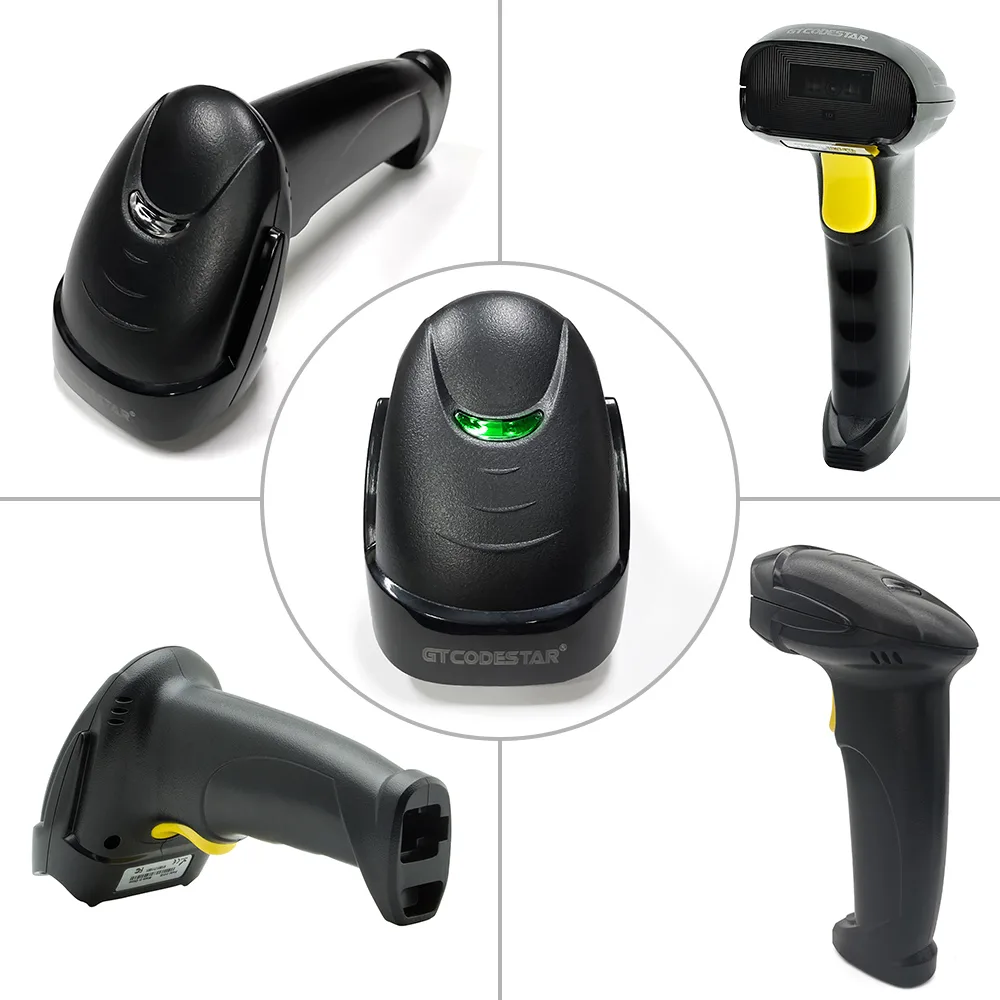

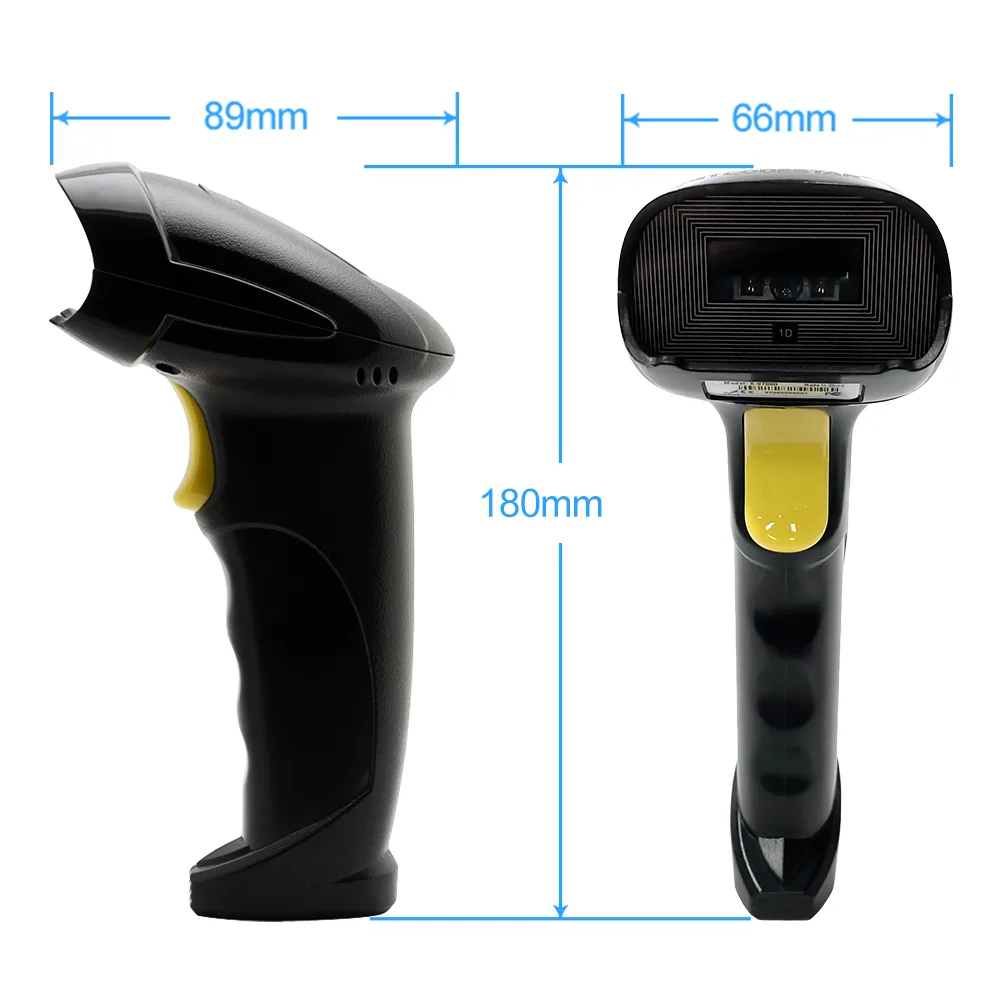

Technical ParameterModelX-9700DItemWired CCD Barcode ScannerPhysical ParameterMaterialABS+PC+TPEPower SupplyDC 5V ±5%Power Consumption580mW（working）；197mW（standby）；890mW（maximum）Weight115g±5g（With cable）SizeL*W*H：196 * 87 * 70（unit:mm）ColorGrayish white,BlackButton Lifespan＞100000timesPerformance ParameterInterfaceUSB cable；（RS232 can be customized）System SupportedLinux，Android，Windows XP、7、8、10，MACLanguage SupportedEnglish, French, Dutch, Spanish (international), Italian (Italian 142), German, etc.(language can be customized)Light Source632nm red diode(LED)Resolution4milBit Error Rate1/5000000Scanning speed300scans/secSensorLinear CCD sensorReading ModeCCDTrigger ModeManual, Continuous scanningScanning Distance10mm-600mm Scanning Width5cm-15cmPrompt ModeBuzzer, Indicator Light（LED）Print Contrast30%Decoding
Capability●Code25-Interleaved ●Code25-Standard ●Code25-Matri
●Code39-Regular ●Code39-FullASCII ●Code32
●Code93-Regular ●Code93-FullASCII ●Code128
●EAN/GSL/UCC-128Auto ●Codabar ●MSI
●EAN/JAN-13 ●UPC-A ●JAN-8
●Code11 ●UPCE0 Scanning AngelRoll30°、Pitch65°、Yew65°Scanning DepthCode39 5mil：6 - 9 cm
Code39 10mil：14 - 20 cmEnvironment ParameterIP GradeIP52Operating Temp.0 to 50℃ / 32 to 122℉Storage Temp.0 to 50℃ / 32 to 122℉Operating Humidity20% to 85%（No Condensation）Storage Humidity20% to 85%（No Condensation）ESD Protection15KV air dischargeShock Resistance1.5m free fall on concrete surface
