Interface: USB;
Light Source: Visible Red light 632nm LED;
Sensor:Sensor: Linear CCD Sensor;;
Processor Type: ARM Cortex™-M3, 32-bit;

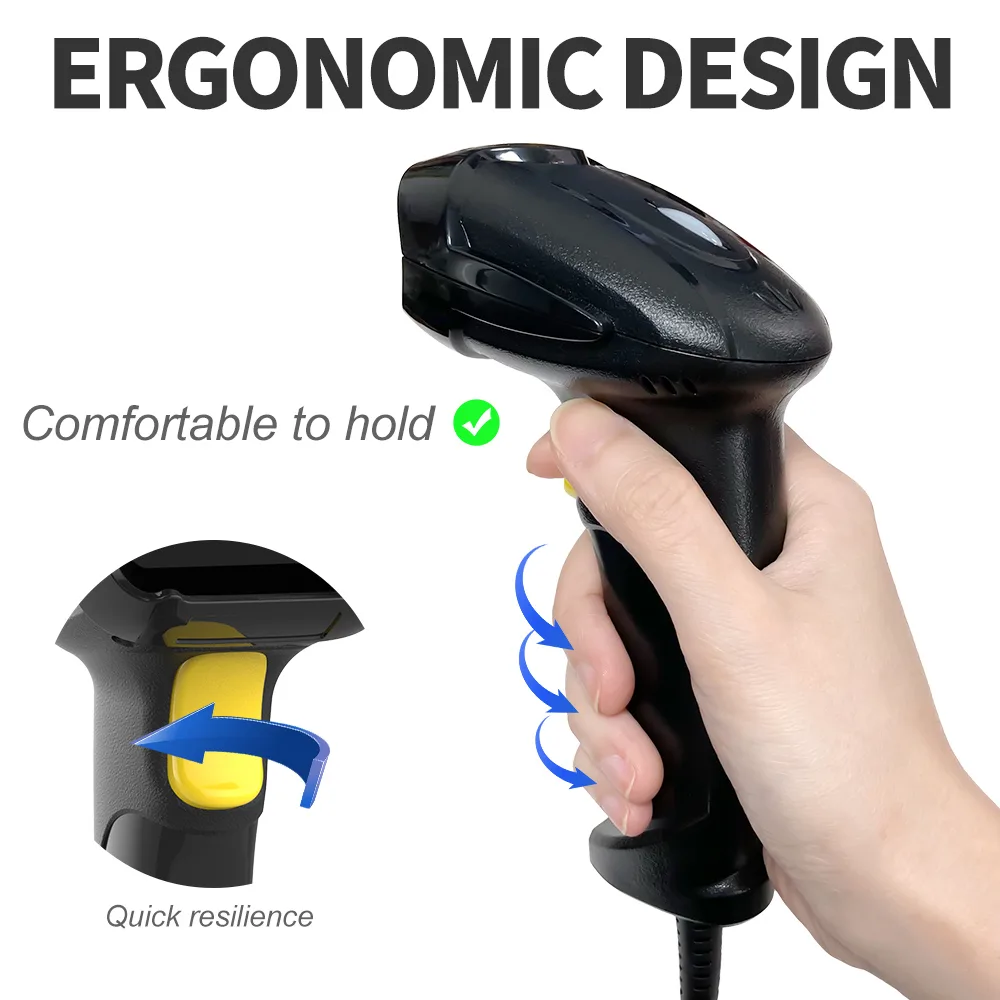

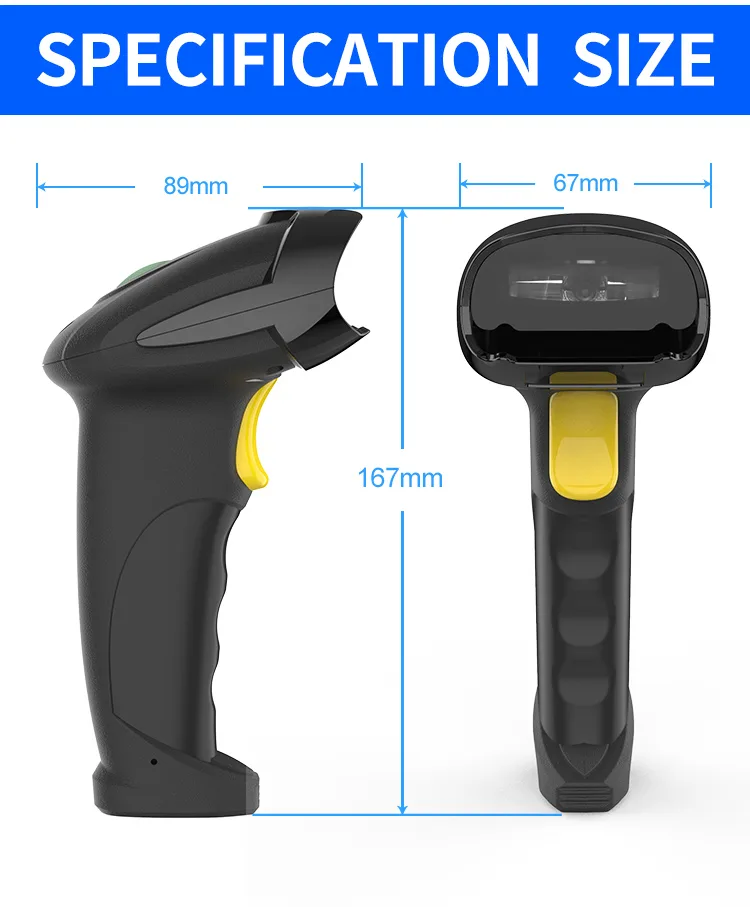

X-9101C Technical ParametersProduct modelX-9101CProduct NameCCD Wired Barcode ScannerPhysical parametersMaterialABS+PC+TPEPower supplyDC 5V ±5%Power consumption0.450W (working); 0.137W (standby); 0.850W (peak) [average power consumption]Weight111g ± 5g (including wire)SizeL * W * H: 168.0 * 66.5 * 89.0 (unit/mm)Colorblack; Grey whiteButton lifespan＞>100000 timesPerformance parametersInterfaceUSB; (RS232 customizable)system supportsLinux，Android，Windows XP、7、8、10，MACLanguage supportEnglish; French; Dutch; Spanish (International); Italian (Italian 142); GermanLight source632nm red light diode (LED)Resolution4milError rate1/5 millionDecoding speed300 times/secSensor linearCCD sensor 1500 pointsReading modleCCDTrigger modemanual mode, continuous scanning modeReading distance10mm-500mmScanning width5cm―15cmFeedback methodbuzzer+indicator light (LED)Print contrast30%Reading Code System

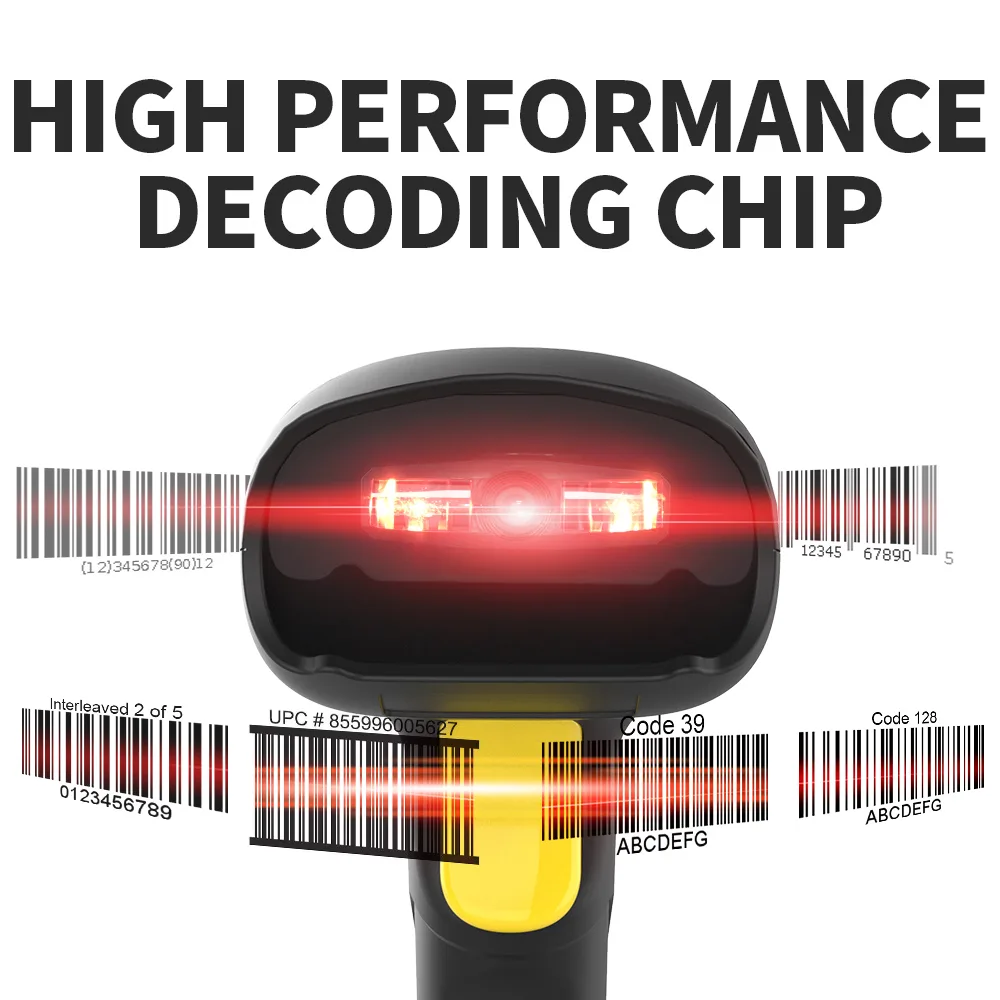

●Code25-Interleaved ●Code25-Standard
●Code25-Matri ●Code39-FullASCII
●Code39-Regular ●Code32
●Code93-Regular ●Code93-FullASCII
●Code128 ●Codabar
●EAN/GSL/UCC-128Auto ●UPC-A
●MSI ●EAN/JAN-13
●JAN-8 ●UPCE0
●Code11
Identify angles and angles30 °, 65 ° elevation, and 65 ° inclinationDepth of fieldCode39 4.17 mil (15 bytes): 5-13 cm

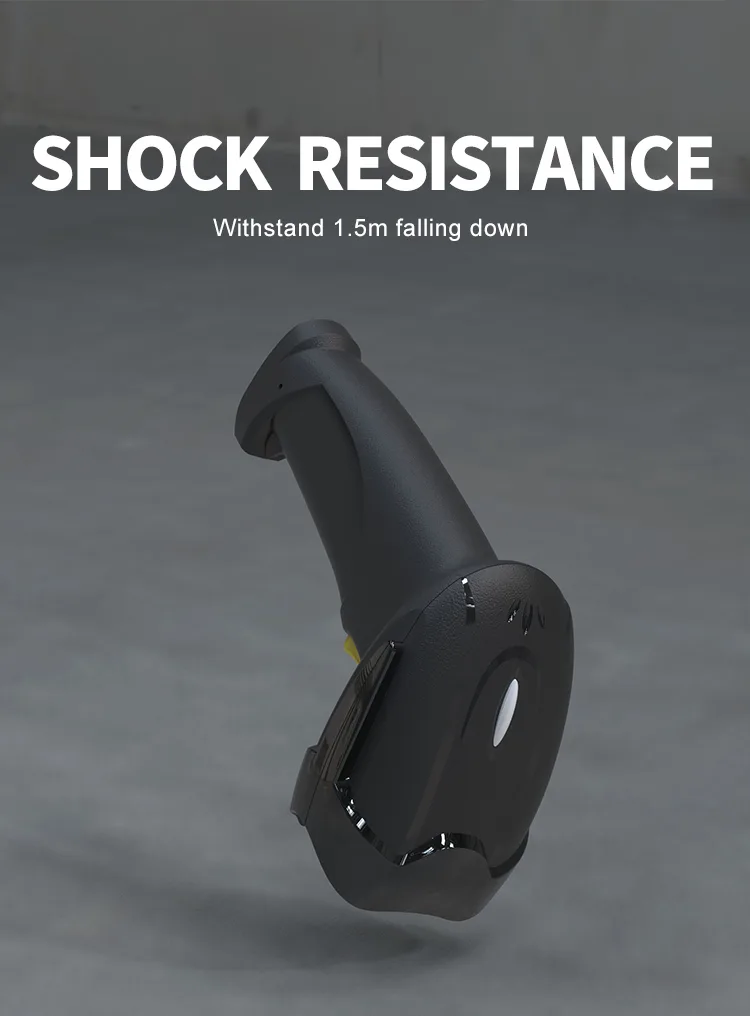

Code128 5.83mil（16 bytes）：5 - 15 cmEnvironmental parametersIP levelIP52Operating temperature0 to 50℃ / 32 to 122℉Storage temperature0 to 50℃ / 32 to 122℉Operating humidity20% to 85%(no condensation)Storage humidity20% to 85%(no condensation)Static protection15KV air dischargeSeismic resistanceFree fall 1.5m (concrete ground)
