Authorization with Datalogic decoding technology and algorithm.
Good at reading folded bar codes and complex bar codes.
Optimal ergonomics.
Buzzer plus vibration prompt, no fear of noisy environment.

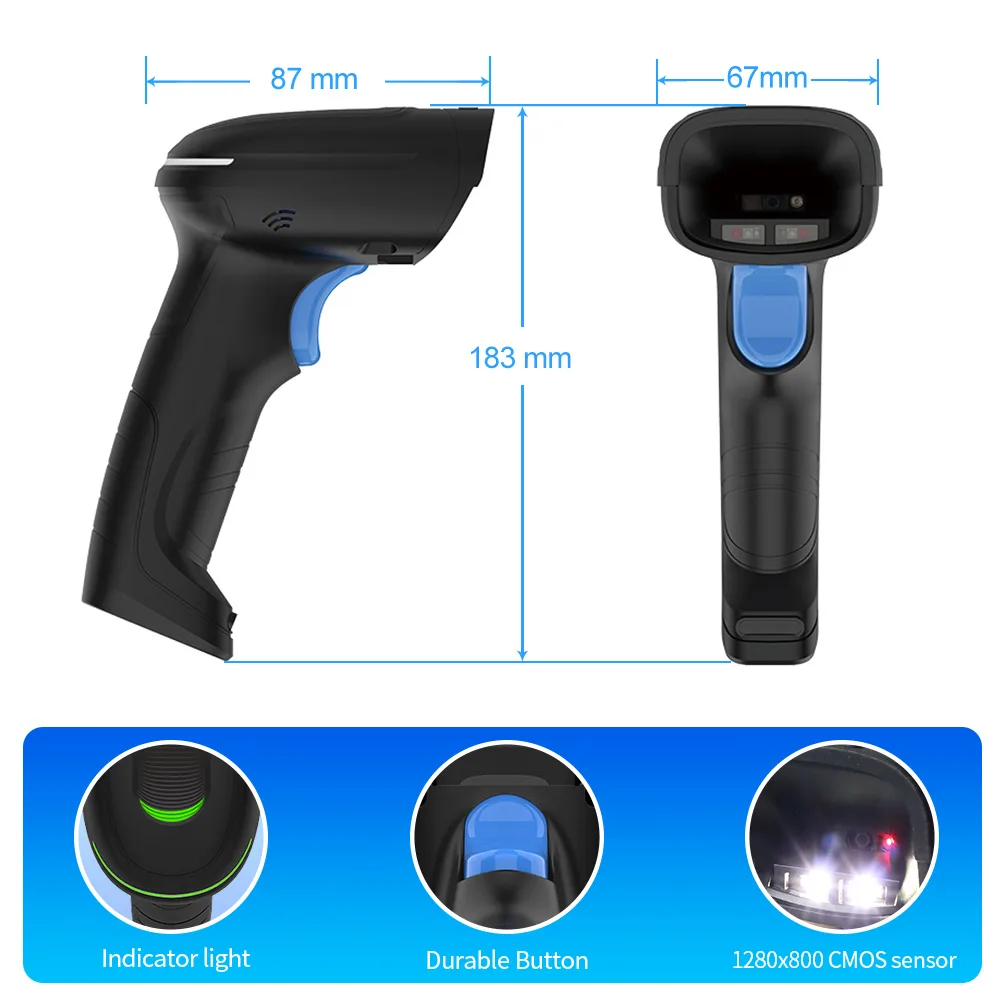

ModelGT-1800FItemWired 2D Barcode ScannerPhysical ParameterMaterialABS+PCPower SupplyDC 5V ±5%CurrentWorking: 2.35W@5V and Standby: 0.475W @5V/ Current: Operating.<470mA Standby:95mAWeight177gSize67mm*87mm*183mmColorBlackButton lifetime>20,000,000 timesPerformance ParameterInterfaceUSB ;USB COMSystem SupportedLinux,Android,Windows XP,7,8,10,MACLanguage SupportedEnglish; Belgian; Finnish; French; German; Italian; British; Danish;etc.Sensorglobal exposure CMOS 1280×800Field of view42°H*30°VLight SourceRed and white LED lightingAimlaserProcessor32-bit ARM MCUResolution≥3milBit error rate1/5,000,000Reading ModeImageTrigger ModeButton trigger, infrared triggerPrompt ModeBuzzer, Indicator Light(LED)+ shockPrint Contrast≥15%Decoding

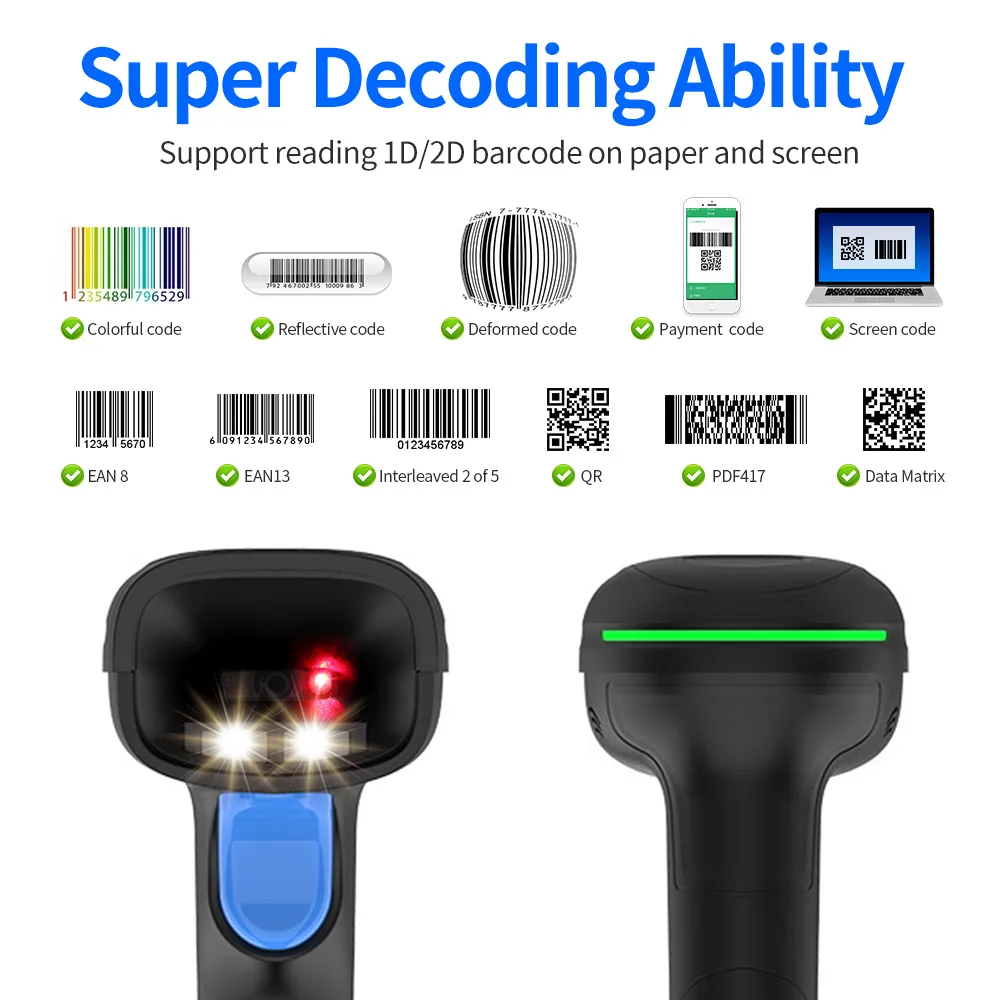

Capability1DAll standard 1D codes including GS1 DataBar™
* Interleaved 2 of 5 * Standard 2 of 5
* Matri 2 of 5 * ITF-14
* Code39-Regular * Code39-FullASCII
* Code93-Regular * Code93-FullASCII
* Code128 * Code11 * UPCE0/E1
* EAN/GS1-128 * Codabar * MSI PLESSEY
* EAN/JAN-13 * UPC-A * JAN/EAN-8
* GS1 Databar * Code 32 * China Postal
* UK PLESSEY2D* Data Matrix * QR Code * PDF417 * HanXin Code
* Aztec * Micro QR * Micro PDF417 * Maxi code
* Dotcode * GS1 Composite *DigimarcPostal*Australian *RM4SCC *Canadian
*Intelligent Mail Bar *Japanese Post *KIX Post
*USPS Planet *UPU FICSOCRChinese ID card number recognition,MRZScanning AngelRoll 360°,Pitch ±60°,Yew±60°Scanning Depth3mil Code 39 10-90mm
13mil UPC 10-200mm
10mil DM 0-100mm
20mil UPC 60-250mm
40mil QR from smartphone: 30-500mmEnvironmental parametersIP GradeIP65Operating Temp.-20 to 50℃Storage Temp.-40 to 70℃Operating Humidity0 to 95%(No Condensation)Storage Humidity0 to 95%(No Condensation)ESD Protection15KV air discharge, 8KV contact dischargeAmbient light0→100000LuxShock ResistanceCan withstand 18 drops from a 2-meter steel plate and 40,000 drops from a 5cm plate
